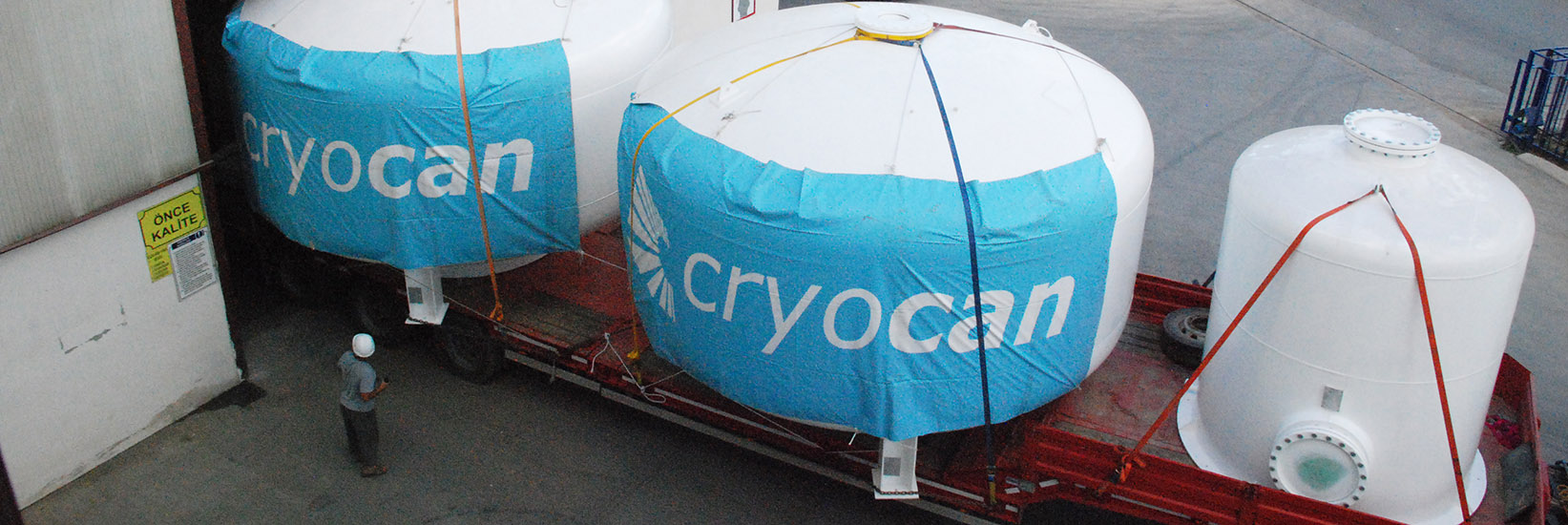

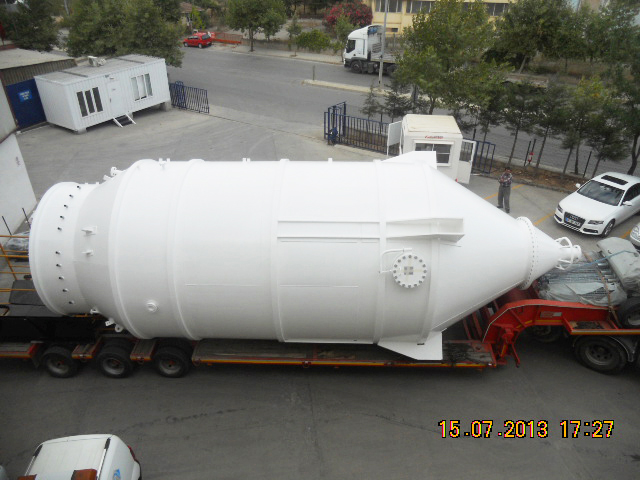

GAS and PROCESS TANKS

MAIN CHARACTERISTICS

• Manufacture in association with EN13445, ASME (U Stamp) and AD 2000 CODE standards, as well as the regulation of the 2014/68 / EU Pressure Equipment Directive (PED)

• Selection of size and anchor according to earthquake and wind load calculations made in accordance with the standards

• Support / leg design to ensure convenient transportation

• High quality paint application by using oven-drying

• Selection of proper equipment and accessories for gas tanks

• Appropriate sheet selection and normalization processes for gas tanks

• Non-destructive inspection methods in accordance with the standards (Radiographic Test, Penetrant Test, Magnetic Particle Test, etc.)

DESIGN CONDITIONS
Design Standarts: ASME SECTION VIII DIV.1 or AD 2000 CODE, EN 13445
Design Presssure: 16 bar - 55 bar
Design Temperature: -40 °C / +50 °C
Material: Carbon Steel P460NL1 or NL2 P355NL1 or NL2 ASTM A516 Grade 70
Cleaning And De-Oiling: EN12300
